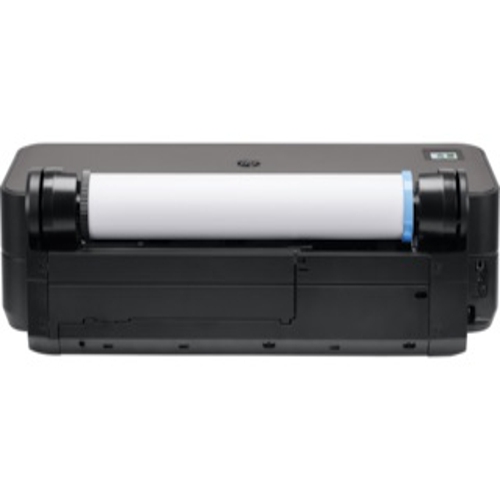

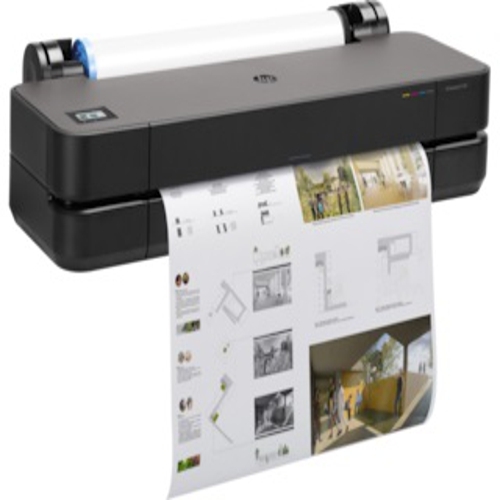

HP DesignJet T230
Product SKU : HP-DesignJet-T230-printer
HP Designjet T230 24-in Printer with 2-year Warranty, (5HB07H)
35 sec/page on D, 68 D prints per hour
Letter size to 24” x 150 feet
Print Resolution Color (best): Up to 2400 x 1200
Sheet feed, roll feed, automatic horizontal cutter
Functions
Print speed, maximum
35 sec/page on D, 68 D prints per hour[1]
Resolution (color)
Up to 2400 x 1200 optimized dpi
Print Technology
HP Thermal Inkjet
Number of print cartridges
4 (C, M, Y, K)
Product disclaimer
This printer is intended to work only with cartridges with a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables reused, remanufactured, and refilled cartridges. More at:http://www.hp.com/learn/ds
Compatible ink types
Dye-based (C, M, Y); pigment-based (K)
Print languages
JPEG, URF
Connectivity, standard
Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Memory, standard
512 MB
Hard disk
None
Non-printable area (cut-sheet)
0.2 x 0.2 x 0.2 x 0.7 in (manual feed); 0.2 x 0.2 x 0.2 x 0.2 in (input tray)
Line accuracy
±0.1%[3]
Maximum optical density (black)
8 L* min/2.10 D[4]
Finished output handling
Sheet feed, roll feed, automatic horizontal cutter
Media sizes supported
A, B, C, D
Media sizes supported
A4, A3, A2, A1
Media sizes, custom
8.3 x 11 to 24 x 74.7 in
Media types
Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semi-gloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes, standard
11 to 24 in
Roll external diameter
3.9 in
Media thickness
Up to 11.8 mil
Power
Input voltage (auto-ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Power consumption
<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
Operating temperature range
41 to 104ºF
Warranty
Two-year limited hardware warranty
Software included
HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
Dimensions (W X D X H)
39.9 x 17.3 x 11.2 in
Weight
47.4 lb
Package weight
61.7 lb
What's in the box
HP Designjet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Sustainability Impact
More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% UL Validated recycled plastic.; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered
